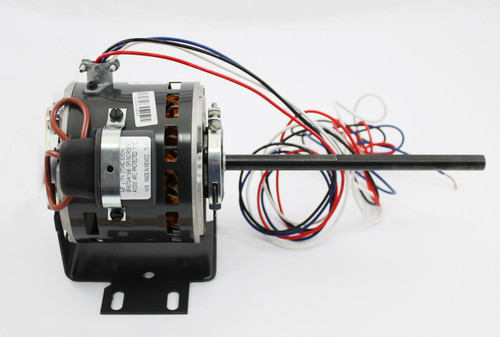

4125 Nidec | 1/30 hp 1100 RPM 3-Speed 115-127V; 5.0" Blower Motor

4125 Nidec | 1/30 hp 1100 RPM 3-Speed 115-127V; 5.0" Blower Motor

This 1/30 horsepower, 3-speed blower motor is designed for heat pump and furnace applications. It serves as a reliable aftermarket replacement for models including IEC 5KCP29BK5875S, 70021692, 7002-1692, and K048TSN4125011B.

Key Specifications

• Horsepower: 1/30 hp
• RPM: 1100
• Voltage: 115-127V
• Amperage: 0.53 amps
• Enclosure: Open
• Frame / Diameter: 5.0" diameter
• Shaft Dimensions: 1/2" x 8.0"
• Rotation: Clockwise (CW) shaft end
• Bearings: Sleeve bearings

Product Features & Fitment

This motor features a permanent split capacitor design with automatic overload protection for continuous duty operation. It includes a 4 MFD capacitor and comes with a resilient base mount for secure installation. The motor case length measures 4.062" and is rated for Class B insulation with a 40°C ambient temperature. It is supplied with 48" leads for easy connection.

Cross Reference

• IEC 5KCP29BK5875S, 70021692, 7002-1692, K048TSN4125011B

Warranty

1 Year Manufacturer Warranty
