Fasco D208 Motor | 1/30 hp 3000 RPM CW 3.3" Diameter 115 Volts

Fasco D208 Motor | 1/30 hp 3000 RPM CW 3.3" Diameter 115 Volts

The Fasco D208 is a compact shaded pole motor designed for applications requiring reliable, low-horsepower performance. It serves as a direct replacement for motors like the Dayton 38N520, ideal for HVAC and small machinery use.

Key Specifications

• Horsepower: 1/30 hp
• RPM: 3000
• Voltage: 115 Volts
• Amperage: 1.1 amps
• Enclosure: Open Ventilation, Self Cooled
• Frame / Diameter: 3.3" Diameter
• Shaft Dimensions: 1/4" diameter x 3" length
• Rotation: Clockwise (CW)
• Bearings: Sleeve Bearings

Product Features & Fitment

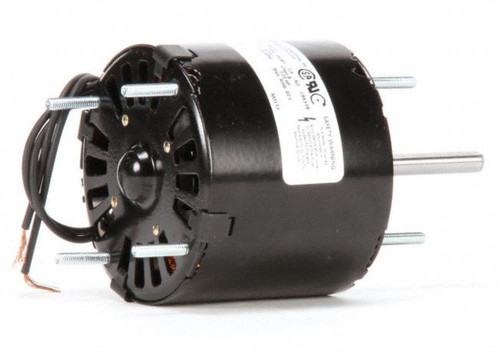

This motor features a stud mount with a 2.85" bolt circle and four mounting studs on each end for secure installation. The motor length excluding the shaft is 3 5/8". A shaft bushing kit (part # KIT240) is available to adapt the shaft from 1/4" to 5/16" diameter if needed.

Warranty

1 Year Manufacturer Warranty
