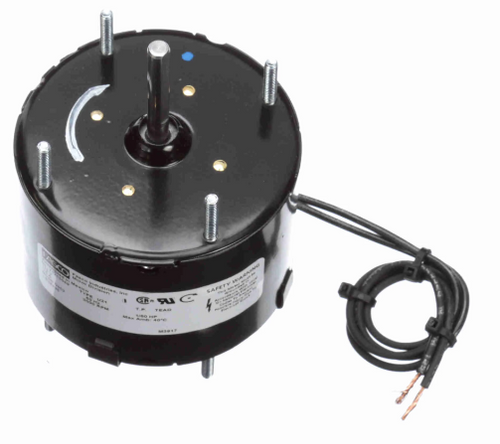

Fasco D402 Motor | 1/60 hp 3000 RPM CW 3.3" Diameter 115 Volts

Fasco D402 Motor | 1/60 hp 3000 RPM CW 3.3" Diameter 115 Volts

The Fasco D402 is a compact, shaded pole motor designed primarily for kitchen exhaust fan applications. It serves as a direct replacement for various models including Nutone 26758, JB1C005N, JB1C005, JA1M046, AA1C010F, and Dayton 38N563.

Key Specifications

• Horsepower: 1/60 hp
• RPM: 3000
• Voltage: 115 Volts
• Amperage: 0.75 amps
• Enclosure: Totally Enclosed, Air Over
• Frame / Diameter: 3.3" Diameter
• Shaft Dimensions: 1/4" diameter x 1 3/4" length
• Rotation: Clockwise SE
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features a stud mount with a 2.85" bolt circle and includes four studs on each end for secure installation. The motor length excluding the shaft measures 2 3/8". A shaft bushing kit (part # KIT240) is available to adapt the shaft from 1/4" to 5/16" diameter, enhancing compatibility with various fan assemblies.

Cross Reference

• Nutone 26758, JB1C005N, JB1C005, JA1M046, AA1C010F. Dayton 38N563

Warranty

1 Year Manufacturer Warranty
