1391 Nidec | 1/4 hp 1050 RPM 3-Speed 208-230V; 5.0" Blower Motor

1391 Nidec 1/4 hp 1050 RPM 3-Speed 208-230V 5.0" Blower Motor

This 1/4 horsepower blower motor is designed for HVAC applications such as heat pumps and furnaces. It serves as a reliable replacement compatible with various models including Coleman, Arvin, Bohn, Delta Therm, and Friedrich.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1050
• Voltage: 208-230V
• Amperage: 1.5 amps
• Enclosure: Open Drip Proof

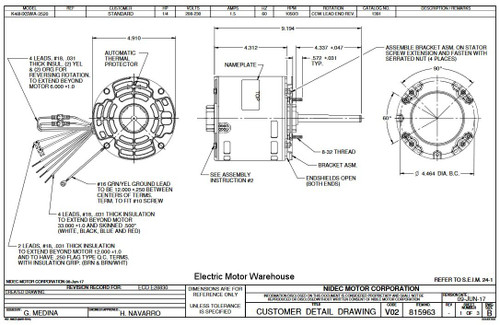

• Frame / Diameter: 5.0" diameter, 5.3" motor case length
• Shaft Dimensions: 1/2" x 4.3"
• Rotation: Reversible
• Bearings: Sleeve bearings

Product Features & Fitment

This permanent split capacitor motor includes automatic overload protection and is rated for continuous duty with Class B insulation, suitable for ambient temperatures up to 40°C. Installation requires a 7.5 MFD 370V capacitor (part #7.5DV) not included. The motor is equipped with 8" leads for easy wiring and fits applications requiring a 3-speed blower motor.

Warranty

1 Year Manufacturer Warranty
