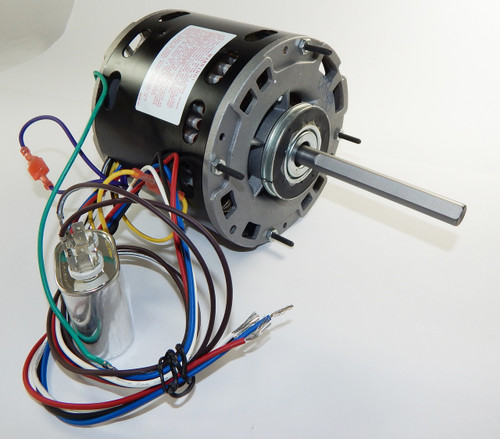

EM3583 | 1/4 hp 1075 RPM 3-Speed 48 Frame 115V Direct Drive Furnace Motor

EM3583 | 1/4 hp 1075 RPM 3-Speed 48 Frame 115V Direct Drive Furnace Motor

This 1/4 horsepower direct drive furnace motor is designed for reliable performance in HVAC applications, replacing standard 48 frame motors. It operates at 1075 RPM with three speed settings and is suitable for various furnace and blower installations.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1075
• Voltage: 115V
• Amperage: 4.2, 2.4, 2.0 amps
• Frame / Diameter: 48 Frame / 5.6" Diameter
• Shaft Dimensions: 1/2" diameter x 4 1/2" length
• Rotation: Reversible
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features a standard efficiency, continuous duty design with a permanent split capacitor and requires a 5 MFD 370V capacitor (not included). It includes 26" wire leads and has a motor body length of 4 5/16". The motor is compatible with "belly band" mounting methods using straps or clamps around the motor body, as well as thru-bolt mounting. Compatible belly band brackets include the Torsion Flex Bracket (3-Prong #92-A8617), Torsion Flex Bracket (4-Prong #FM554), and Welded 3-Ring Bracket (#KIT317). The motor also features 2 1/2" resilient rings and a reversing plug for rotation adjustment.

Warranty

1 Year Manufacturer Warranty
