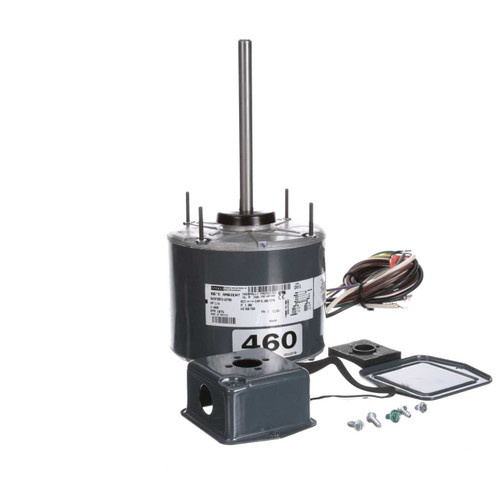

Fasco D913 Motor | 1/4 hp 1075 RPM 5.6" Diameter 460 Volts

Fasco D913 Motor | 1/4 hp 1075 RPM 5.6" Diameter 460 Volts

The Fasco D913 is a 1/4 horsepower, single-phase motor designed for condenser fan applications in air conditioning systems. It serves as a reliable replacement motor, engineered for durable performance in HVAC environments.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1075
• Voltage: 460 Volts
• Amperage: 1.1 amps
• Enclosure: Open, air over
• Frame / Diameter: 5.6" diameter
• Shaft Dimensions: 1/2" diameter x 6 3/8" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This motor supports both belly band and base mounting options with a 5.2" bolt circle. It is designed for flexible installation, allowing shaft-down or horizontal mounting positions. The motor requires a 5 MFD 370V capacitor (Fasco part #5DV) for proper operation. Certified by CSA and UL, it is rated for ambient temperatures up to 60 degrees Celsius and features all-angle mount ball bearings for enhanced durability.

Warranty

1 Year Manufacturer Warranty
