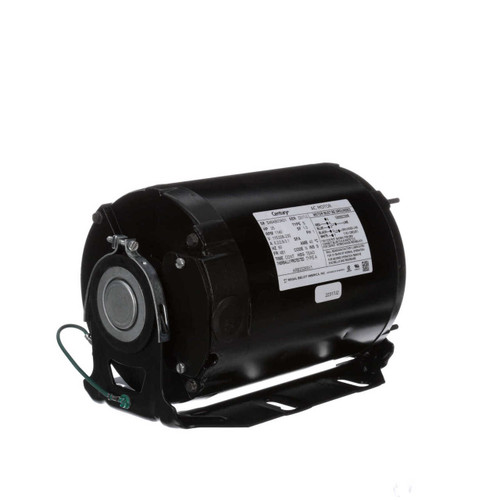

ARB2026SV1 Century 1/4 hp 1140 RPM 48Y Frame 115-208/230V Belt Drive TEAO Blower Motor

ARB2026SV1 Century 1/4 hp 1140 RPM 48Y Frame 115-208/230V Belt Drive TEAO Blower Motor

This Century 1/4 horsepower blower motor is designed for belt drive applications requiring reliable, continuous operation. It is suitable for replacing motors in HVAC systems and other industrial equipment needing a 48Y frame, TEAO enclosure, and reversible rotation.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1140
• Voltage: 115-208/230 V, 60 Hz
• Amperage: 6.2 / 2.8-3.1 A
• Enclosure: Totally Enclosed Air Over (TEAO)
• Frame / Diameter: 48Y
• Shaft Dimensions: 1/2" diameter x 1 5/8" length, 3" shaft height
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a resilient cradle base with extended thru bolts at the shaft end for secure mounting and durability. It includes automatic overload protection and quick connect terminals for easy wiring. Designed for continuous duty, this split-phase motor offers simple rotation changes and Class B insulation for enhanced thermal protection.

Warranty

1 Year Manufacturer Warranty
