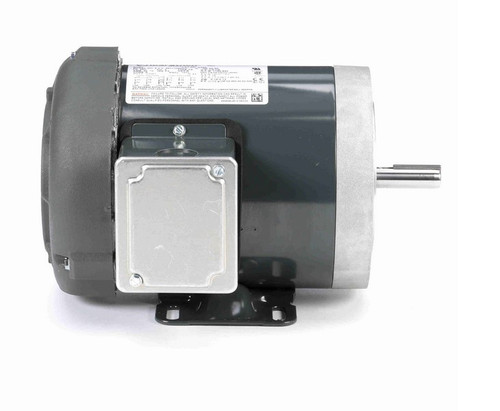

G586 Marathon 1/4 hp 1200 RPM 3-Phase 56C Frame TENV (base) 208-230/460V Marathon Motor

• 1/4 hp 1200 RPM, 1.7-2.0/1.0 amps 208-230/460 Volts 50-60hz. 3-Phase
• NEMA 56C frame, C-face, Keyed Shaft 5/8" Diameter x 1 7/8"
• Service Factor: 1.15, Overload protection = None
• Removable Base, Reversible, Ball Bearings, Class F Insulation
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated. 056T11F5311
