8331 Nidec | 1/4 hp 1625 RPM 1-Speed 380/420/460V; 5.6" Blower Motor
8331 Nidec | 1/4 hp 1625 RPM 1-Speed 380/420/460V; 5.6" Blower Motor
8331 Nidec | 1/4 hp 1625 RPM 1-Speed 380/420/460V; 5.6" Blower Motor
8331 Nidec | 1/4 hp 1625 RPM 1-Speed 380/420/460V; 5.6" Blower Motor

Nidec

8331 Nidec | 1/4 hp 1625 RPM 1-Speed 380/420/460V; 5.6" Blower Motor

(No reviews) Write a Review
$357.65
$319.13
SKU 8331
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 380/420/460V
Horsepower 1/4 HP
RPM 1625
Hertz 50/60 Hz
Type Permanent Split Capacitor
Amperage 0.8/0.95 Amps
Bearings Sleeve Bearings
Speeds 1-Speed
Insulation Class Class B
Rotation Clockwise
Duty Continuous Duty
Adding to cart… The item has been added
Description

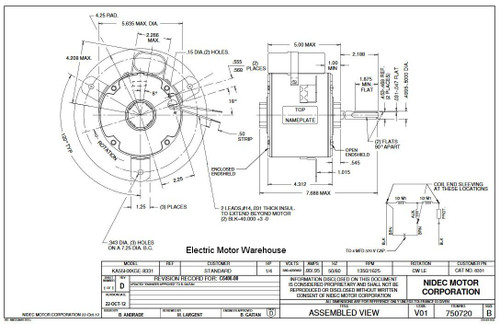

  • 1/4 hp 1625 RPM 1-Speed 420/460V 0.8/0.95 amps 50/60hz.
  • Shaft 0.5" x 2.188"
  • Rotation: CW shaft end
  • 5.6" Diameter
  • Motor case length 4.31"
  • Self-aligning sleeve bearings
  • Capacitor Included
  • 1 Year mfg warranty

Permanent Split Capacitor Motor. Automatic Overload Protection. Continuous Duty; Open Air Over Enclosure; Class B Insulation; 40C Ambient Temperature; 40" Leads, 50/60 Hertz. Suggested aftermarket replacement for Tecumseh TFM1864, K55HXHGE-8331, KA55KGE8331093B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 380/420/460V
Horsepower 1/4 HP
RPM 1625
Hertz 50/60 Hz
Type Permanent Split Capacitor
Amperage 0.8/0.95 Amps
Bearings Sleeve Bearings
Speeds 1-Speed
Insulation Class Class B
Rotation Clockwise
Duty Continuous Duty
!
