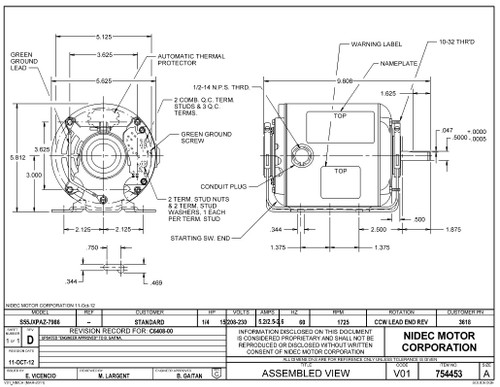

3618 Nidec | 1/4 hp 1725 RPM 1-Speed 115/208-230V; 5.6" Blower Motor

3618 Nidec | 1/4 hp 1725 RPM 1-Speed 115/208-230V; 5.6" Blower Motor

This Nidec 3618 blower motor is a reliable replacement designed for HVAC and industrial applications requiring a 1/4 horsepower motor with reversible rotation. It operates at 1725 RPM and supports multiple voltage configurations, making it suitable for various blower assemblies.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1725
• Voltage: 115/208-230V
• Amperage: 5.2/2.5 amps
• Enclosure: Open Drip Proof
• Frame / Diameter: 48Z Frame / 5.6" Diameter
• Shaft Dimensions: 1/2" x 1.875"
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This split-phase motor features automatic overload protection and is rated for continuous duty with Class B insulation, suitable for ambient temperatures up to 40°C. It includes a resilient base mount for secure installation and a motor case length of 7.75 inches, ensuring compatibility with standard blower housings.

Warranty

1 Year Manufacturer Warranty
