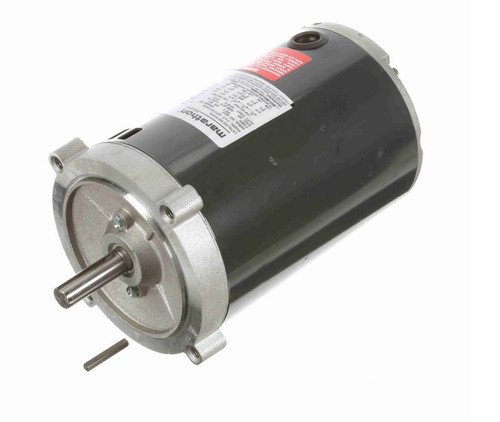

K247A Marathon 1/4 hp 1800 RPM 3-Phase 56C Frame ODP (no base) 230/460V Marathon Electric Motor

• 1/4 hp 1800 RPM, 1.0/0.5 amps 230/460 Volts 60hz. 3-Phase

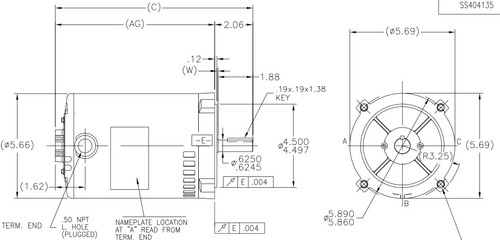

• NEMA 56C frame, C-face, Keyed Shaft 5/8" Diameter x 1 7/8"
• Service Factor: 1.0, Overload protection = None
• No Base, Reversible, Ball Bearings, Class B Insulation
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof. 056T17D11053
