- 1/4 hp 1800 RPM, 3.1/1.5 amps 115/230 Volts 60hz. Single Phase Motor
- NEMA 48 Frame Keyed Shaft 1/2" Diameter x 1 7/8"
- Service Factor: 1.35, Overload protection = Auto
- Reversible, Resilient Base Mount, Ball Bearings, Class B Insulation
- 1 Year Manufacture Warranty

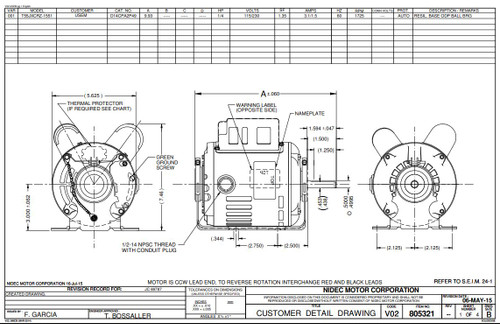

General purpose motor can be used for many applications requiring a single phase electric motor. Wiring diagram on motor name plate. ODP = Open Drip Proof
T055CRZ1551012B
