D14CPA2P49 Nidec | 1/4 hp 1800 RPM 48 Frame 115/230V Open Drip Nidec Electric Motor

SKU:
D14CPA2P49
Availability:
Subject to availability
Weight:
18.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $335.00
Now: $299.20
Adding to cart… The item has been added
  • 1/4 hp 1800 RPM, 3.1/1.5 amps 115/230 Volts 60hz. Single Phase Motor
  • NEMA 48 Frame Keyed Shaft 1/2" Diameter x 1 7/8"
  • Service Factor: 1.35, Overload protection = Auto
  • Reversible, Resilient Base Mount, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

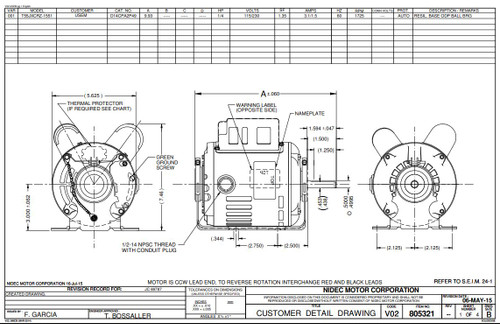

General purpose motor can be used for many applications requiring a single phase electric motor. Wiring diagram on motor name plate. ODP = Open Drip Proof

T055CRZ1551012B
