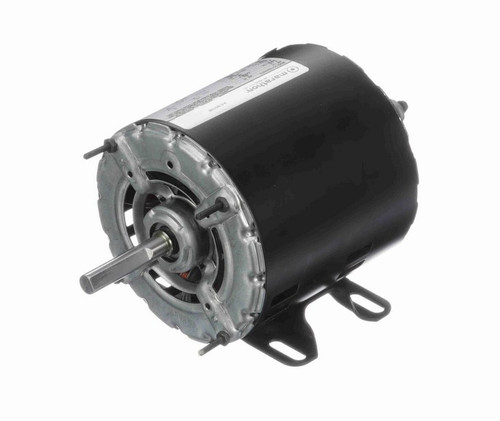

H901 Marathon 1/4 hp 1800 RPM 48 Frame 115V Open Drip Marathon Electric Motor

H901 Marathon 1/4 hp 1800 RPM 48 Frame 115V Open Drip Marathon Electric Motor

This general-purpose Marathon electric motor is designed for a variety of single-phase applications requiring reliable performance. It serves as a direct replacement motor with a robust open drip proof (ODP) enclosure suitable for many industrial and HVAC uses.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1800
• Voltage: 115V
• Amperage: 5.1 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 48 Frame
• Shaft Dimensions: 1/2" Diameter x 2 1/4" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This split-phase motor features a keyed shaft and rigid base mount for secure installation. It includes Class B insulation and steel endshields for durability. The wiring diagram is conveniently located on the motor nameplate to assist with proper electrical connections.

Warranty

1 Year Manufacturer Warranty
