D14CP2P9 Nidec | 1/4 hp 1800 RPM 56 Frame 115/230V Open Drip Nidec Electric Motor
D14CP2P9 Nidec | 1/4 hp 1800 RPM 56 Frame 115/230V Open Drip Nidec Electric Motor
D14CP2P9 Nidec | 1/4 hp 1800 RPM 56 Frame 115/230V Open Drip Nidec Electric Motor
D14CP2P9 Nidec | 1/4 hp 1800 RPM 56 Frame 115/230V Open Drip Nidec Electric Motor

Nidec

D14CP2P9 Nidec | 1/4 hp 1800 RPM 56 Frame 115/230V Open Drip Nidec Electric Motor

(No reviews) Write a Review
$322.00
$287.62
SKU D14CP2P9
UPC 6.63E+11
Availability Subject to availability
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/230V
Horsepower 1/4 HP
RPM 1800
Phase Single Phase
Frame 56
Enclosure ODP
Hertz 60 Hz
Amperage 3.1/1.5 Amps
Bearings Ball Bearings
Service Factor 1.35
Insulation Class Class B
Adding to cart… The item has been added
Description
  • 1/4 hp 1800 RPM, 3.1/1.5 amps 115/230 Volts 60hz. Single Phase Motor
  • NEMA 56 Frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • Capacitor Start
  • Service Factor: 1.35, Overload protection = None
  • Reversible, Resilient Base Mount, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

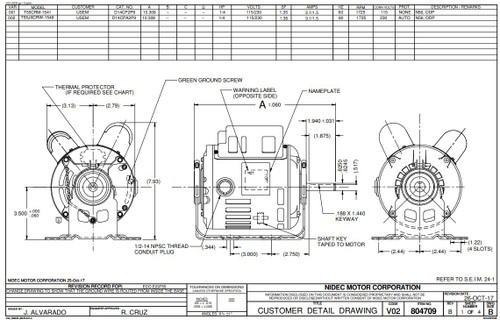

General purpose motor can be used for many applications requiring a single phase electric motor. Wiring diagram on motor name plate. ODP = Open Drip Proof

T055CRM1541012B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/230V
Horsepower 1/4 HP
RPM 1800
Phase Single Phase
Frame 56
Enclosure ODP
Hertz 60 Hz
Amperage 3.1/1.5 Amps
Bearings Ball Bearings
Service Factor 1.35
Insulation Class Class B
!
