108423.00 Leeson | 1/4 hp 1800 RPM 56C TENV Frame 90 volts DC Wash Down Duty

108423.00 Leeson 1/4 hp 1800 RPM 56C TENV Frame 90 Volts DC Wash Down Duty Motor

This Leeson 1/4 hp motor is designed for wash down duty applications requiring a durable, moisture-resistant solution. It replaces standard motors in environments where moisture and corrosion resistance are critical, delivering reliable performance at 1800 RPM with a 90 V DC power supply.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1800
• Voltage: 90 Volts DC
• Amperage: 2.7 amps
• Enclosure: Totally Enclosed Non Ventilated (TENV)
• Frame / Diameter: NEMA 56C Frame

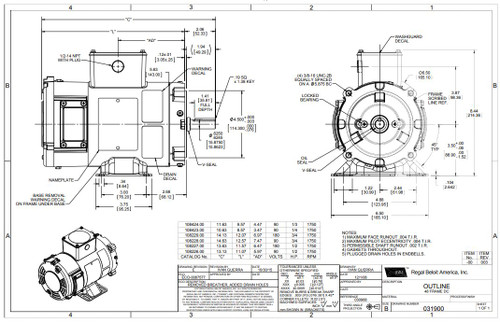

• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length

Product Features & Fitment

This Leeson Washguard motor features a removable rigid base for flexible mounting options. It is coated with durable Rust-Oleum white epoxy paint and includes stainless steel components such as the shaft, conduit box cover, nameplate, and fan guard for enhanced corrosion resistance. The motor incorporates special gaskets, slingers, seals, and four endshield drains to protect internal components from moisture. It is compatible with Leeson speed controls models 174102, 174107, and 174307.

Warranty

1 Year Manufacturer Warranty
