1880 Nidec | 1/4 hp 825 RPM 1-Speed 460V; 5.6" Condenser Motor

1880 Nidec | 1/4 hp 825 RPM 1-Speed 460V; 5.6" Condenser Motor

This 1/4 horsepower condenser motor is designed for HVAC applications requiring reliable, continuous-duty operation. It serves as a direct replacement for compatible condenser units, delivering efficient performance with reversible rotation.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 825
• Voltage: 460V
• Amperage: 1.0 amps
• Enclosure: Totally Enclosed Air Over (TEAO)

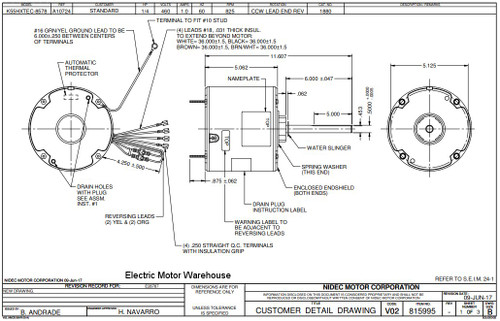

• Frame / Diameter: 5.6" diameter
• Shaft Dimensions: 1/2" x 6"
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This motor features a permanent split capacitor design with automatic overload protection, ensuring durability and safety during continuous use. It requires a 5 MFD 370V capacitor (part #5DV) for proper operation. The motor case length measures 5.1", and it includes 30" leads for easy electrical connections. Class B insulation rating and suitability for 60°C ambient temperatures make it ideal for demanding HVAC environments.

Warranty

1 Year Manufacturer Warranty
