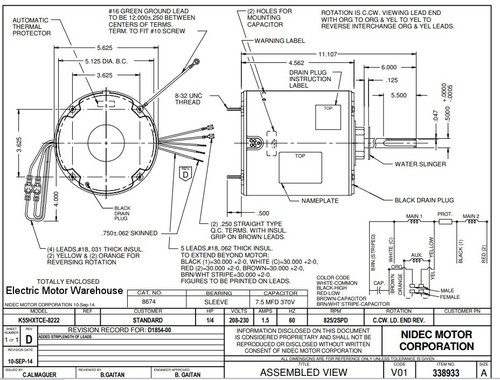

8674 Nidec | 1/4 hp 825 RPM 2-Speed 208-230V; 5.6" Condenser Motor
8674 Nidec | 1/4 hp 825 RPM 2-Speed 208-230V; 5.6" Condenser Motor
8674 Nidec | 1/4 hp 825 RPM 2-Speed 208-230V; 5.6" Condenser Motor
8674 Nidec | 1/4 hp 825 RPM 2-Speed 208-230V; 5.6" Condenser Motor

Nidec

8674 Nidec | 1/4 hp 825 RPM 2-Speed 208-230V; 5.6" Condenser Motor

(No reviews) Write a Review
$327.75
$293.14
SKU 8674
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230V
Horsepower 1/4 HP
RPM 825
Type Permanent Split Capacitor
Amperage 1.5 Amps
Bearings Sleeve Bearings
Speeds 2-Speed
Insulation Class Class B
Duty Continuous Duty
Adding to cart… The item has been added
Description
  • 1/4 hp 825 RPM 2-Speed 208-230V 1.5 amps
  • Shaft 1/2" x 6"
  • Rotation = Reversible
  • 5.6" Diameter
  • Motor case length 4.6"
  • Sleeve bearings
  • 7.5MFD 370V Capacitor REQUIRED (Our Part #7.5DV)
  • 1 Year mfg warranty

Permanent Split Capacitor Motor. Automatic Overload Protection. Continuous Duty; Totally Enclosed Air Over Enclosure; Class B Insulation; 60C Ambient Temperature; 30" Leads, K055TCE8222012B





Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230V
Horsepower 1/4 HP
RPM 825
Type Permanent Split Capacitor
Amperage 1.5 Amps
Bearings Sleeve Bearings
Speeds 2-Speed
Insulation Class Class B
Duty Continuous Duty
!
