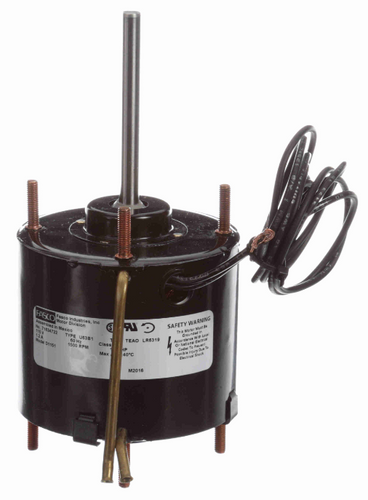

Fasco D1151 Motor | 1/40 hp 1500 RPM CCW 3.3" Diameter 115 Volts

Fasco D1151 Motor | 1/40 hp 1500 RPM CCW 3.3" Diameter 115 Volts

The Fasco D1151 is a compact 1/40 horsepower motor designed for gas burner applications, serving as a direct replacement for models such as Economite/Mid-Continent AA2P026N, AA2P026, Dayton 48GN54, and AO Smith/Century/Universal #400. It is ideal for use in HVAC systems requiring reliable, low-power motor operation.

Key Specifications

• Horsepower: 1/40 hp
• RPM: 1500
• Voltage: 115 Volts
• Amperage: 1.2 Amps
• Frame / Diameter: 3.3" Diameter
• Shaft Dimensions: 5/16" diameter x 3 1/4" length
• Rotation: Counterclockwise (CCWSE)
• Bearings: Sleeve Bearings, Totally Enclosed Air Over (TEAO)

Product Features & Fitment

This motor features a 4-stud mount on each end, facilitating secure and versatile installation. The motor length excluding the shaft measures 2 3/4", making it suitable for compact spaces. Its sleeve bearing design and TEAO enclosure ensure durability and efficient cooling during operation.

Cross Reference

• Economite/Mid-Continent Gas Burner AA2P026N, AA2P026. 7163-4722; Dayton 48GN54. Replaces AO Smith/Century/Universal # 400

Warranty

1 Year Manufacturer Warranty
