Model 429 Century 1/5 hp 1050 RPM 3-Speed CW 5" Diameter 208-230V Century # 429

Model 429 Century 1/5 hp 1050 RPM 3-Speed CW 5" Diameter 208-230V

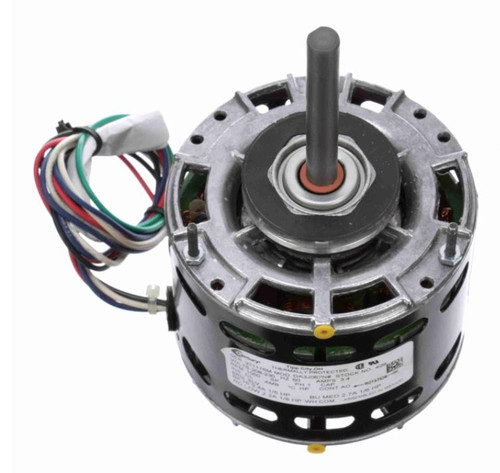

This Century Model 429 motor is a versatile 3-speed shaded pole motor designed for HVAC and industrial applications. It replaces Fasco models D318, 7151-0188, DA3J067N, and DA3J067, ensuring compatibility and reliable performance.

Key Specifications

• Horsepower: 1/5 - 1/6 - 1/8 hp
• RPM: 1050
• Voltage: 208-230V, 60 Hz
• Amperage: 3.4 amps
• Frame / Diameter: 5" diameter
• Shaft Dimensions: 1/2" x 3-7/8"
• Rotation: Clockwise (CWSE)
• Bearings: Sleeve bearings
• Enclosure: Open ventilation, air over

Product Features & Fitment

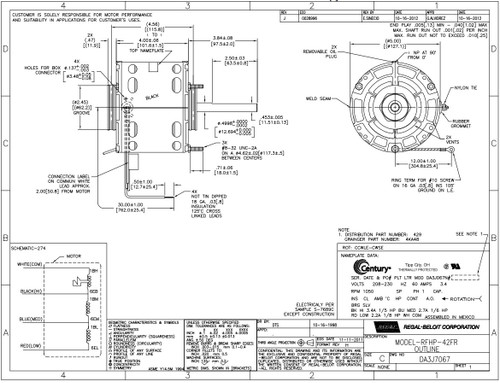

The motor features a belly band or stud mount with a bolt circle diameter of 4.62", and a motor length (excluding shaft) of 4". Its shaded pole design and open ventilation make it suitable for air-over cooling applications.

Cross Reference

• Fasco D318, 7151-0188, DA3J067N, DA3J067

Warranty

1 Year Manufacturer Warranty
