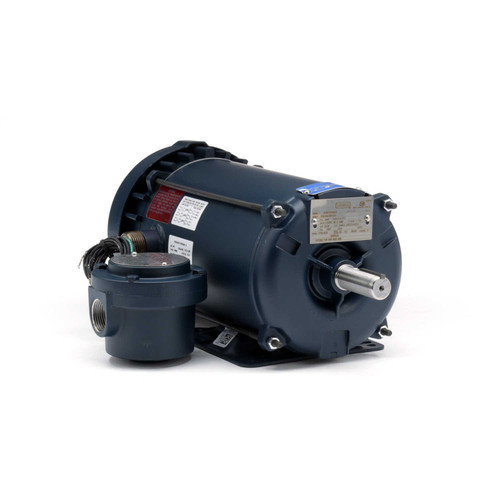

121915.00 Leeson | 1.5 hp 1725 RPM 145T 230/460V TEFC Explosion Proof

121915.00 Leeson | 1.5 hp 1725 RPM 145T 230/460V TEFC Explosion Proof

This Leeson 1.5 hp, 1725 RPM three-phase motor is designed for hazardous location applications requiring explosion-proof equipment. It replaces Leeson model G120490.00 and is suitable for industrial environments demanding reliable, explosion-proof performance.

Key Specifications

• Horsepower: 1.5 hp
• RPM: 1725
• Voltage: 230/460 V
• Amperage: 4.6/2.3 A
• Enclosure: TEFC (Totally Enclosed Fan Cooled), Explosion Proof

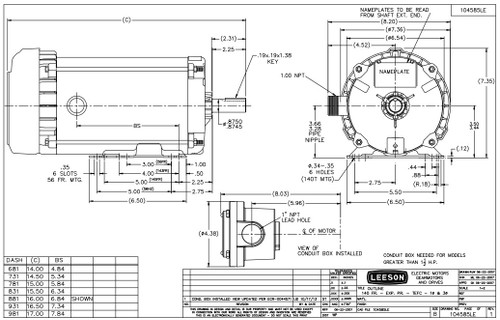

• Frame / Diameter: NEMA 145T
• Shaft Dimensions: Keyed shaft, 7/8" diameter x 2 1/4" length

Product Features & Fitment

This motor features an explosion-proof design compliant with Class 1, Groups C & D and Class II, Groups F & G hazardous location standards, meeting temperature code T3B. It includes an explosion-proof conduit box at no additional cost and offers automatic overload protection with a service factor of 1.0. The motor is UL and CSA listed for safety and reliability in demanding industrial settings.

Cross Reference

• Leeson G120490.00

Warranty

1 Year Manufacturer Warranty
