D32P2D Nidec | 1.5 hp 1800 RPM 145T Frame 208-230/460V Open Drip Nidec Electric Motor

SKU:
D32P2D
Weight:
35.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $380.00
Now: $339.00
Adding to cart… The item has been added
  • 1.5 hp 1800 RPM, 4.2/2.1 amps 208-230/460 Volts Three Phase Motor

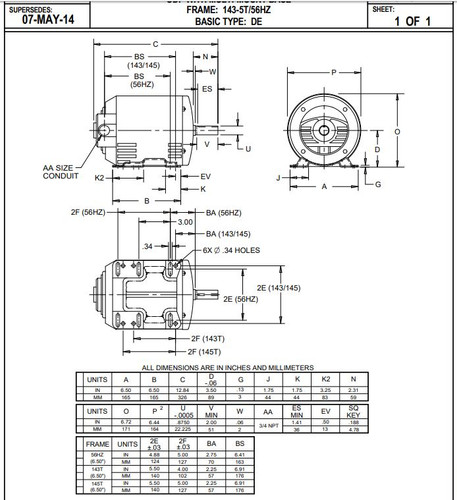

  • NEMA 145T frame, Keyed Shaft 7/8" Diameter x 2 1/4"
  • ODP; Service Factor: 1.15, Overload protection = None
  • Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty.  Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof

Model FC92, Dayton 2NKX7
