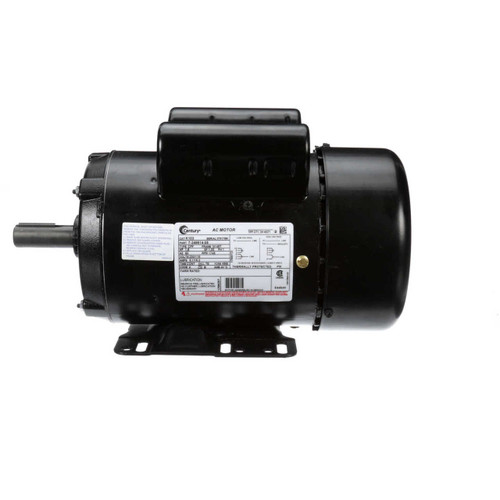

K103V1 Century 1.5 hp 1800 RPM 145T Frame (Farm Duty) 230/115V

K103V1 Century 1.5 hp 1800 RPM 145T Frame (Farm Duty) 230/115V

This Century 1.5 hp motor is designed for high starting torque applications such as woodworking machines, farm equipment, and other industrial machinery exposed to dust, dirt, and oil. It replaces standard motors requiring a 1.5 hp capacity with robust performance and durability in demanding environments.

Key Specifications

• Horsepower: 1.5 hp
• RPM: 1800
• Voltage: 115/230 V
• Amperage: 14.2/7.1 A
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Frame / Diameter: NEMA 145T
• Shaft Dimensions: 7/8" Diameter x 2 1/4" Length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

The motor features a keyed shaft and a flat base with six mounting holes for standard NEMA 145T frame installation. It includes manual overload protection with a red reset button and gasketed junction box and capacitor covers for enhanced durability. The motor is corrosion resistant with removable condensate plugs, making it suitable for harsh environments requiring reliable high starting torque (300-400% of full load torque).
