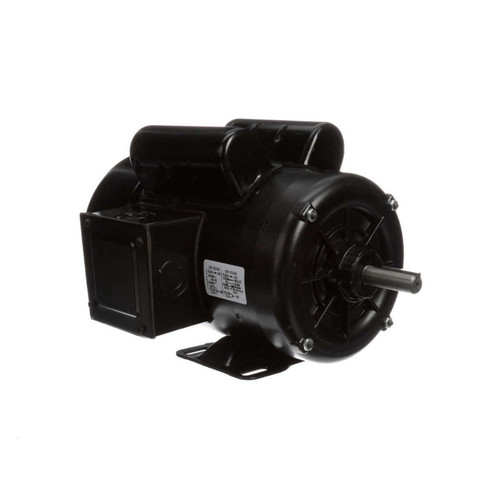

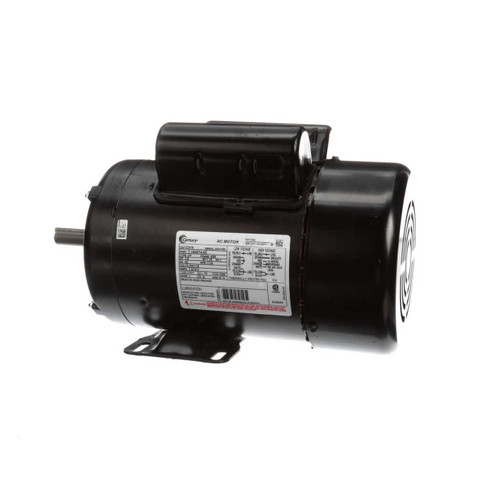

C314 Century 1.5 hp 1800 RPM 56 Frame (Farm Duty) 230/115volts Electric Motor

C314 Century 1.5 hp 1800 RPM 56 Frame (Farm Duty) 230/115volts Electric Motor

The C314 Century electric motor is a reliable 1.5 horsepower farm duty motor designed for various industrial and agricultural applications. It serves as a direct replacement for motors requiring a 56 frame, 1800 RPM, and dual voltage operation.

Key Specifications

• Horsepower: 1.5 hp
• RPM: 1800
• Voltage: 115/230V, 60 Hz
• Amperage: 15.0/7.5 amps
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Rotation: Reversible

Product Features & Fitment

This motor features a rigid base for stable mounting and is lubricated with low-temperature grease for extended service life. It includes manual overload protection and is built with Class B insulation and high starting torque, making it suitable for demanding farm duty environments.

Warranty

1 Year Manufacturer Warranty
