C312 Century 3/4 hp 1800 RPM 56 Frame (Farm Duty) 230/115V Electric Motor

SKU:: C312
UPC:
Weight:: 32.00 LBS
Width:: 16.00 (in)
Height:: 12.00 (in)
Depth:: 12.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 230/115V
Horsepower:: 3/4 HP
RPM:: 1800
Frame:: 56
Enclosure:: TEFC
Hertz:: 60 Hz
Amperage:: 10.4/5.2 Amps
Insulation Class:: Class B
Mounting:: Rigid Base

Current Stock:

Was: $418.49

Now: $354.66

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

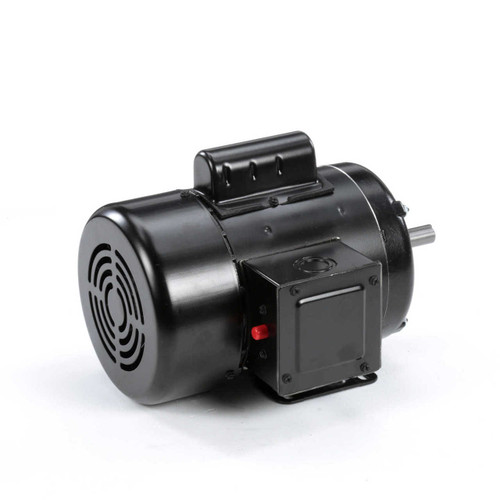

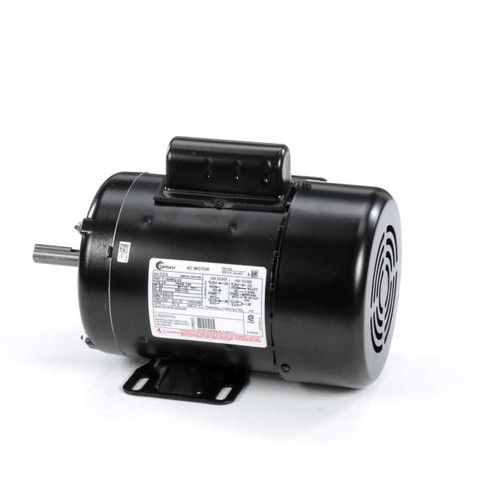

C312 Century 3/4 hp 1800 RPM 56 Frame (Farm Duty) 230/115V Electric Motor

This Century 3/4 horsepower electric motor is designed for farm duty applications, providing reliable performance and high starting torque. It is a direct replacement for AO Smith/Century motors and compatible with Dayton 48Y729 models.

Key Specifications

Horsepower: 3/4 hp
RPM: 1800
Voltage: 115/230 V
Amperage: 10.4/5.2 A
Enclosure: TEFC (Totally Enclosed Fan Cooled)
Frame / Diameter: NEMA 56 Frame
Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
Rotation: Reversible

Product Features & Fitment

This motor features a rigid base for stable mounting and is lubricated with low temperature grease for enhanced durability. It includes manual overload protection and Class B insulation, ensuring safe and efficient operation in demanding farm environments.
