108262.00 Leeson | 1.5 hp 1800 RPM 180 Volts DC 56/145TC Frame TEFC

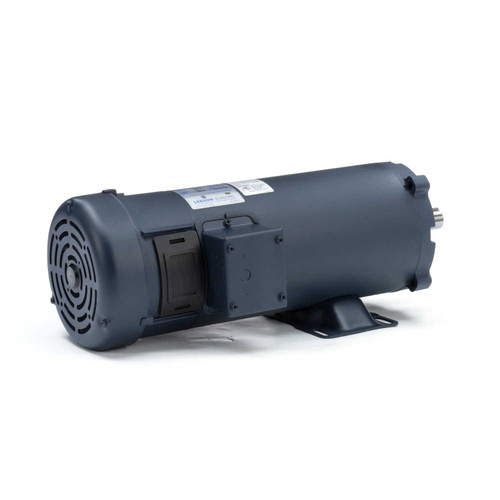

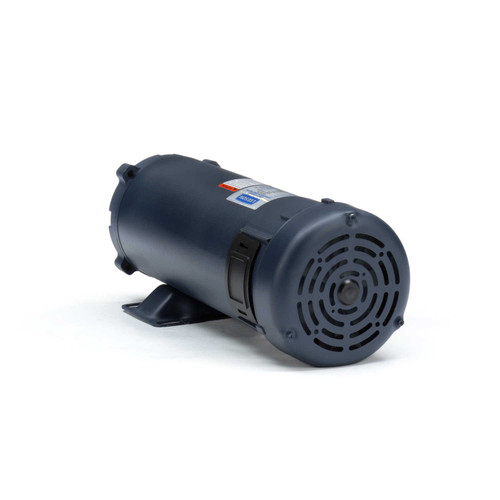

This Leeson 1.5 horsepower permanent magnet DC motor delivers adjustable speed and constant torque, ideal for industrial applications requiring dynamic braking or reversible rotation. It is designed to replace similar NEMA 56CZ frame motors and is commonly used with SCR controllers for precise speed control.
Key Specifications
- Horsepower: 1.5 hp
- RPM: 1800
- Voltage: 180 Volts DC
- Amperage: 7.6 amps
- Enclosure: TEFC (Totally Enclosed Fan Cooled)
- Frame / Diameter: 56/145TC, NEMA 56CZ Frame
- Shaft Dimensions: 7/8" Diameter Keyed Shaft
- Rotation: Reversible with simple 2-lead connection
Product Features & Fitment

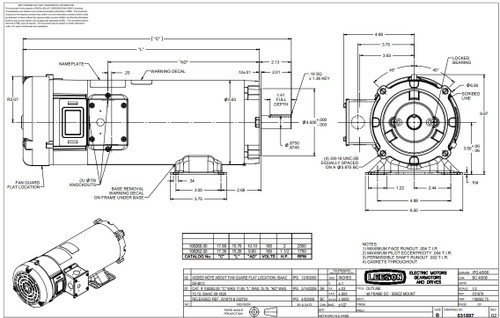

The motor features a 56/145TC face with a removable bolt-on base. When removing or reinstalling the base, washers must be used to compensate for base thickness to ensure proper mounting. This motor is UL and CSA listed and meets NEMA MG1 standards. It is compatible with Leeson speed controls models 174307 and 174308 for enhanced speed regulation.
Warranty
1 Year Manufacturer Warranty
