1.5 hp 1800 RPM 56C Frame 208-230/460V TEFC Nidec C-Face Electric Brake Motor # BMU32S2AFCR

SKU:
BMU32S2AFCR
Weight:
38.00 LBS
Shipping:
Calculated at Checkout
$1,148.85
  • 1.5 hp 1800 RPM, 4.7/2.3 amps 208-230/460 Volts 3 phase Motor

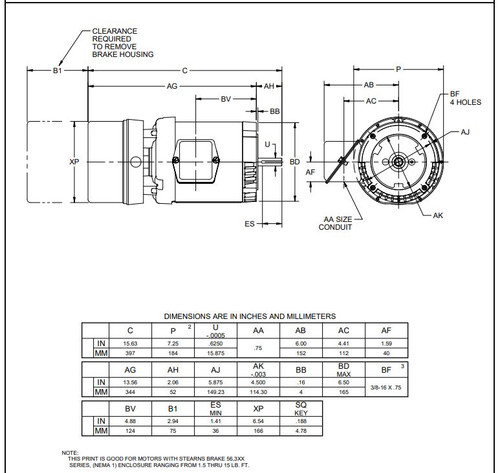

  • NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • Face Mount-No Base
  • 10 Foot Pounds
  • Service Factor: 1.25, Overload protection = None
  • Reversible, Ball Bearings, Class F Insulation
  • TEFC = Totally Enclosed Fan-Cooled
  • 40C Ambient Temp.
  • 1 Year Manufacture Warranty

Unimount Brake Motor

Model CE55
