sale
Leeson

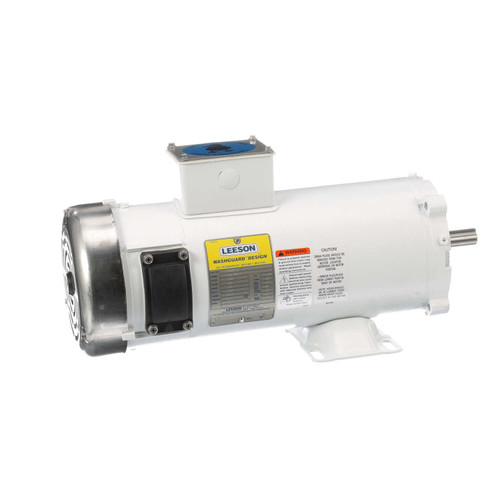

108232.00 Leeson | 1.5 hp 1800 RPM 56C TEFC Frame 180 volts DC Wash Down Duty
(No reviews)
Write a Review
Write a Review
Leeson
108232.00 Leeson | 1.5 hp 1800 RPM 56C TEFC Frame 180 volts DC Wash Down Duty
$1,669.80
$1,415.31
SKU
108232.00
UPC
6.92E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
180V
Horsepower
1-1/2 HP
RPM
1800
Frame
180
Enclosure
TEFC
Amperage
7.6 Amps
Service Factor
1.0
Insulation Class
Class H
Mounting
Rigid Base
- 1.5 hp 1800 RPM, 7.6 amps, 180 Volts DC

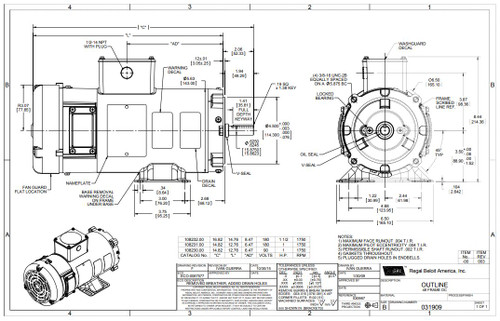

- NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8"
- Leeson Washguard Motor - Removable Rigid Base
- Service Factor: 1.0
- overload protection = None
- Class H Insulation
- TEFC = Totally Enclosed Fan Cooled
- 1 Year Manufacture Warranty
Leeson's original moisture-shedding "duck" motor. Durable Rust Oleum White epoxy paint. Stainless steel shaft, conduit box cover, nameplate and fan guard. Special gaskets, slingers and seals. Four endshield drains. Moisture resistant interior components. Can use with Leeson speed control 174102, 174107, 174307.
C4D17WK3G, 108232.00
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 180V |
| Horsepower | 1-1/2 HP |
| RPM | 1800 |
| Frame | 180 |
| Enclosure | TEFC |
| Amperage | 7.6 Amps |
| Service Factor | 1.0 |
| Insulation Class | Class H |
| Mounting | Rigid Base |
