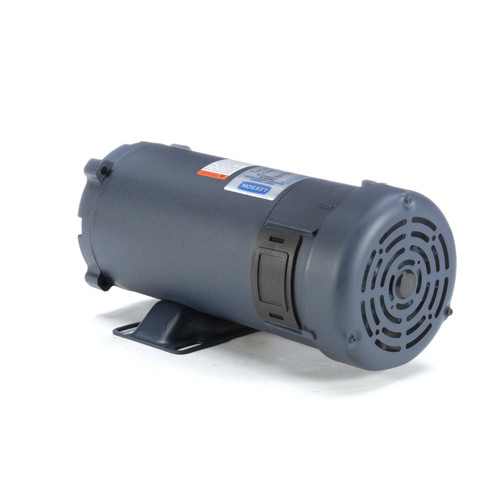

This Leeson 1.5 horsepower permanent magnet DC motor operates at 2500 RPM and 180 Volts DC, designed for applications requiring adjustable speed and constant torque. It is ideal for use with SCR controllers in systems needing dynamic braking, reversible rotation, or speed control.

Key Specifications

• Horsepower: 1.5 hp
• RPM: 2500
• Voltage: 180 Volts DC
• Amperage: 7.5 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

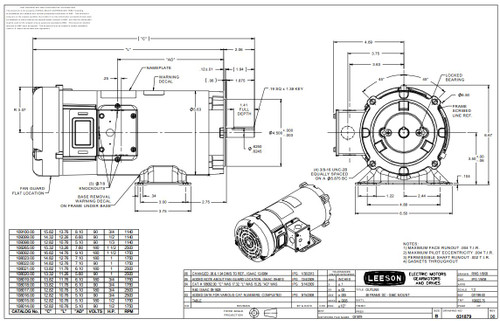

• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: 5/8" Diameter Keyed shaft
• Rotation: Reversible with simple 2-lead connection

Product Features & Fitment

The motor features a 56C face with a removable bolt-on base for flexible mounting options. When removing the base, bolts should not be reinstalled without washers to compensate for base thickness. This motor is compatible with Leeson speed controls models 174307 and 174308, supporting adjustable speed and reversing capabilities.

Warranty

1 Year Manufacturer Warranty
