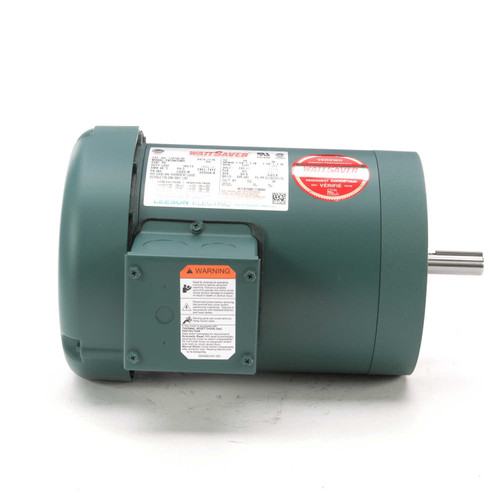

1.5 hp 3600 RPM 56C Frame TEFC C-Face (No Base) 230/460V Leeson Electric Motor # 116750

SKU:
116750
Weight:
33.00 LBS
Shipping:
Free Shipping
$420.70
  • 1.5 hp 3600 RPM, 4.0/2.0 amps 208-230/460 Volts 60hz. Three Phase Motor
  • NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.25 - overload protection = Auto
  • No Base - Reversible - Round Body Motor - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

C6T34FC98C, 116750.00, Replaces 110192.00
