- 1.5 hp 3600 RPM, 13.3/6.7 amps 115/230 Volts 60hz. Single Phase Motor

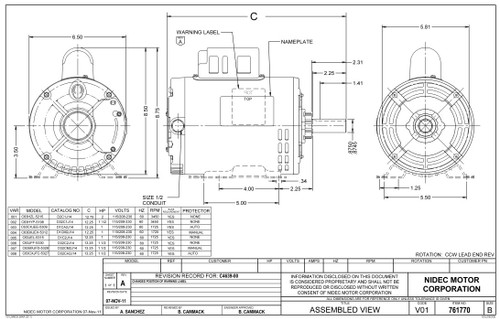

- NEMA 56H Frame Keyed Shaft 5/8" Diameter x 1 7/8"
- ODP; Service Factor: 1.15, Overload protection = None
- Reversible, Rigid Base Mount, Ball Bearings, Class B Insulation
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a single phase electric motor. Continuous Duty. Wiring diagram on motor name plate. ODP = Open Drip Proof
T063CNK2149012B
