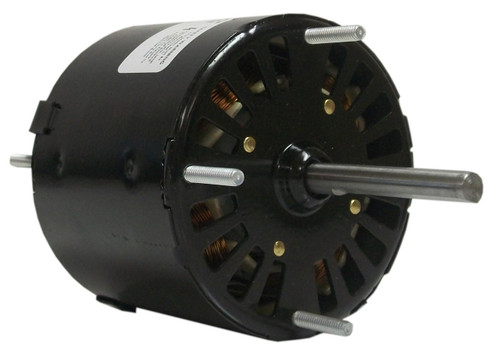

Fasco D609 Motor | 1/50 hp 1500 RPM CCW 3.3" Diameter 115 Volts

Fasco D609 Motor | 1/50 hp 1500 RPM CCW 3.3" Diameter 115 Volts

The Fasco D609 is a 1/50 horsepower shaded pole motor designed for applications requiring a 1500 RPM speed with counterclockwise shaft rotation. It serves as a reliable replacement for models JA2M610N and JA2M610, suitable for various HVAC and industrial uses.

Key Specifications

• Horsepower: 1/50 hp
• RPM: 1500
• Voltage: 115 Volts
• Amperage: 0.9 Amps
• Enclosure: Semi Enclosed
• Frame / Diameter: 3.3" Diameter
• Shaft Dimensions: 1/4" diameter x 2 3/8" length
• Rotation: Counterclockwise (CCWSE)
• Bearings: Sleeve bearings

Product Features & Fitment

This motor features a stud mount with a 2.85" bolt circle and includes four mounting studs on each end for secure installation. The motor length excluding the shaft measures 2 3/16". It is designed with open ventilation and air-over cooling. A shaft bushing adapter (1/4" to 5/16", part # KIT240) is available separately to accommodate different shaft sizes.

Cross Reference

• JA2M610N, JA2M610

Warranty

1 Year Manufacturer Warranty
