Fasco D124 Motor | 1/50 hp 1500 RPM CW 3.3" Diameter 115 Volts

Fasco D124 Motor | 1/50 hp 1500 RPM CW 3.3" Diameter 115 Volts

The Fasco D124 is a compact, shaded pole motor designed for air over applications, ideal for replacing similar 1/50 hp motors in HVAC and industrial equipment. It features a totally enclosed air over (TEAO) design ensuring reliable operation in various environments.

Key Specifications

• Horsepower: 1/50 hp
• RPM: 1500
• Voltage: 115 Volts
• Amperage: 0.75 Amps
• Enclosure: Totally Enclosed Air Over (TEAO)
• Frame / Diameter: 3.3" Diameter
• Shaft Dimensions: 1/4" diameter x 2 1/4" length
• Rotation: Clockwise Shaft End (CWSE)
• Bearings: Sleeve Bearings

Product Features & Fitment

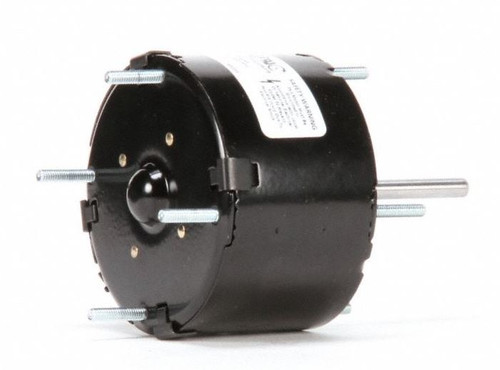

This motor features a stud mount with a 2.85" bolt circle and four mounting studs on each end, which can be trimmed if not required. The motor length excluding the shaft is 2 1/2". The shaft can be shortened if necessary to fit specific applications. Additionally, a shaft bushing (1/4" to 5/16", part # KIT240) is available for compatibility adjustments.

Warranty

1 Year Manufacturer Warranty
