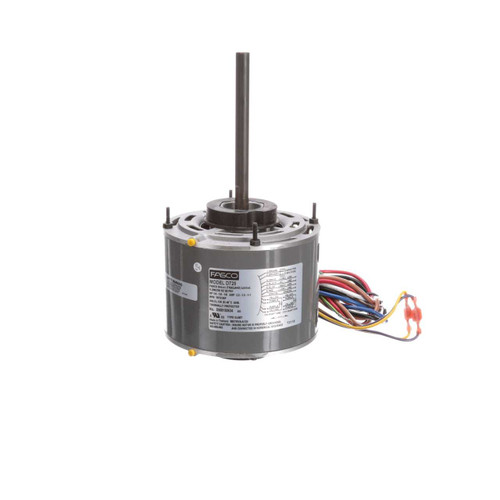

Fasco D725 Motor | 1/6 hp 1075 RPM 3-Speed 208-230 Volts 5.6" Diameter Fasco Furnace Motor

Fasco D725 Motor | 1/6 hp 1075 RPM 3-Speed 208-230 Volts 5.6" Diameter Furnace Motor

The Fasco D725 is a direct drive furnace blower motor designed for reliable performance in HVAC applications. It serves as a replacement motor for various furnace blower assemblies requiring a 1/6 horsepower, 3-speed motor with reversible rotation.

Key Specifications

• Horsepower: 1/6 hp
• RPM: 1075
• Voltage: 208-230 Volts
• Amperage: 2.2 Amps
• Frame / Diameter: 5.6" Diameter
• Shaft Dimensions: 1/2" x 6"
• Rotation: Reversible
• Bearings: Sleeve bearings

Product Features & Fitment

This motor features a 3-speed design and is thermally protected for safe operation. It supports both belly band and stud mounting options with a 5.2" bolt circle. The motor is open ventilated with air-over cooling and includes all-angle mount sleeve bearings. A 5 MFD 370V capacitor (Fasco Part #5DV) is required for proper operation but is not included. The motor length excluding the shaft measures 4".

Warranty

1 Year Manufacturer Warranty
