Fasco D917 Motor | 1/6 hp 1075 RPM 5.6" Diameter 208-230 Volts

Fasco D917 Motor | 1/6 hp 1075 RPM 5.6" Diameter 208-230 Volts

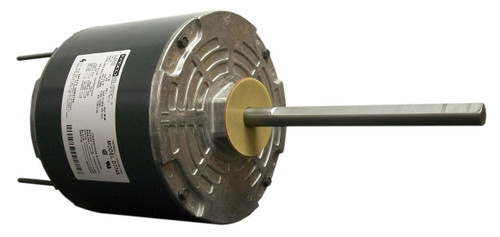

The Fasco D917 is a 1/6 horsepower condenser fan motor designed for air conditioning applications. It serves as a reliable replacement motor featuring a totally enclosed, air-over design suitable for various mounting orientations.

Key Specifications

• Horsepower: 1/6 hp
• RPM: 1075
• Voltage: 208-230 Volts
• Amperage: 1.0 Amps
• Enclosure: Totally Enclosed Air Over
• Frame / Diameter: 5.6" Diameter
• Shaft Dimensions: 1/2" diameter x 6 1/2" length
• Rotation: Reversible
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor supports both belly band and base mounting options with a 5.2" bolt circle and includes four drilled and tapped holes in the shell for secure installation. It requires a 5 MFD 370V capacitor (Part #5DV) for operation. The motor is rated for 60 Hz operation with a 60°C ambient temperature limit and is CSA certified and UL recognized. Its design allows for shaft-down or horizontal mounting with all-angle sleeve bearings for versatile application.

Warranty

1 Year Manufacturer Warranty
