1873 Nidec | 1/6 hp 825 RPM 1-Speed 208-230V; 5.6" Condenser Motor

1873 Nidec | 1/6 hp 825 RPM 1-Speed 208-230V; 5.6" Condenser Motor

This 1/6 horsepower condenser motor is designed for HVAC applications, providing reliable performance at 825 RPM. It serves as a direct replacement motor compatible with Rheem mounting configurations.

Key Specifications

• Horsepower: 1/6 hp
• RPM: 825
• Voltage: 208-230V
• Amperage: 1.0 amps
• Enclosure: Open Air Over

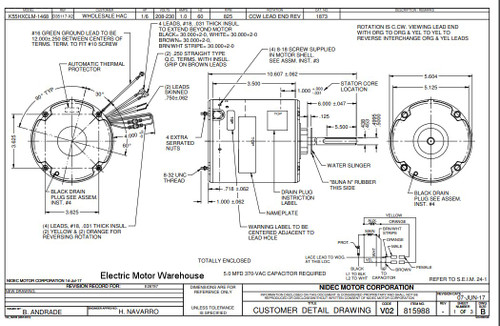

• Frame / Diameter: 5.6" diameter, 4.1" motor case length
• Shaft Dimensions: 1/2" x 6"
• Rotation: Reversible
• Bearings: Sleeve bearings

Product Features & Fitment

This motor features a permanent split capacitor design with automatic overload protection for continuous duty operation. It includes four holes in the shell for Rheem-style mounting and requires a 5 MFD 370V capacitor (Part #5DV) for proper function. The motor is rated for Class B insulation and a 60°C ambient temperature, with 30" leads for easy electrical connections.

Warranty

1 Year Manufacturer Warranty
