5440H Nidec 1/8-1/12 hp 1075 RPM 3-Speed 208-230V 5.0" Condenser Motor

This 5440H Nidec condenser motor is designed for outside air conditioning condenser fan applications. It serves as a reliable replacement motor compatible with multiple bolt circle configurations, providing efficient and continuous operation.

Key Specifications

• Horsepower: 1/8 - 1/12 hp
• RPM: 1075
• Voltage: 208-230V
• Amperage: 0.8 amps
• Enclosure: Totally Enclosed Air Over (TEAO)

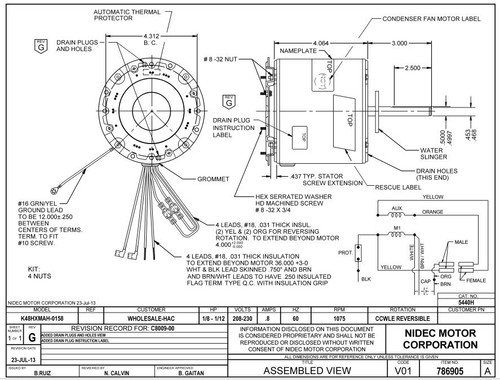

• Frame / Diameter: 5.0" diameter, 5.0" motor case length
• Shaft Dimensions: 1/2" diameter x 3.0" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This permanent split capacitor motor includes automatic overload protection and is rated for continuous duty with Class B insulation suitable for 70°C ambient temperatures. It features a stud mount compatible with 4.3, 4.4, and 4.6 bolt circles for versatile installation. A 5MFD/370V capacitor (part #5DV) is required for operation but sold separately. The motor comes with 36" leads and operates at 60 Hertz.

Warranty

1 Year Manufacturer Warranty
