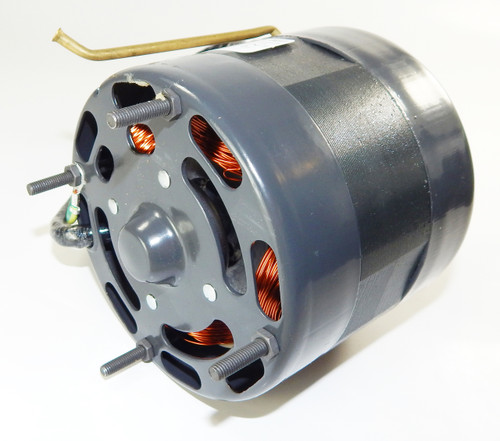

Fasco D374 Motor | 1/8 hp 1500 RPM 2-Speed CW 4.4" Diameter 115 Volts

Fasco D374 Motor | 1/8 hp 1500 RPM 2-Speed CW 4.4" Diameter 115 Volts

The Fasco D374 is a versatile 1/8 horsepower motor designed for attic exhaust and attic fan applications. It serves as a reliable replacement for motors such as the Dayton 241X90, providing efficient two-speed operation.

Key Specifications

• Horsepower: 1/8 hp
• RPM: 1500
• Voltage: 115 Volts
• Amperage: 0.4 amps
• Frame / Diameter: 4.4" diameter
• Shaft Dimensions: 3/8" diameter x 2 1/2" length
• Rotation: Clockwise
• Bearings: Sleeve bearings

Product Features & Fitment

This motor features a belly band or stud mounting option with a bolt circle diameter of 3.89" and four mounting studs on the back for secure installation. The motor length excluding the shaft measures 3 5/8", facilitating compact fitment in various HVAC setups.

Warranty

1 Year Manufacturer Warranty
