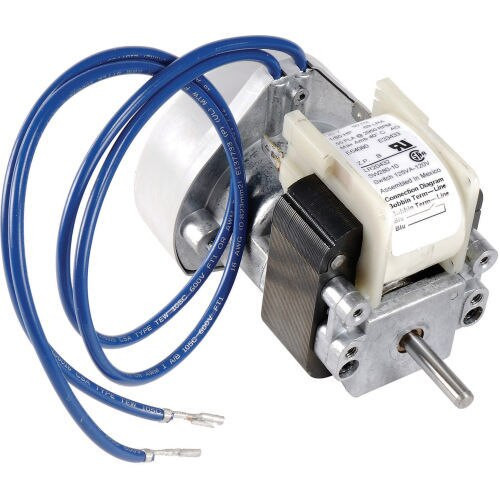

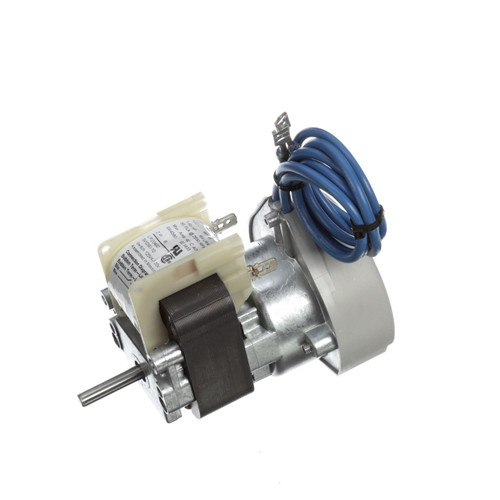

Fasco K629 Motor | 1/85 hp 2950 RPM CW 115 Volts (Evcon 7102-2187)

Fasco K629 Motor | 1/85 hp 2950 RPM CW 115 Volts (Evcon 7102-2187)

The Fasco K629 is a reliable replacement motor designed for HVAC applications, compatible with Evcon part numbers 7102-2187, 7990-317, and related models. It is commonly used in assembly models such as S1-7990-6451 and fits various DGAM, DGAT, and DLAS series units.

Key Specifications

• Horsepower: 1/85 hp
• RPM: 2950
• Voltage: 115 Volts
• Amperage: 0.55 Amps
• Shaft Dimensions: 1/4" diameter x 1.1" length
• Rotation: Clockwise (CW)
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features a centrifugal switch with two blue wires and male push-on terminals for easy electrical connections. It mounts using threaded holes and has a motor length (excluding shaft) of 4 5/8 inches. The design facilitates straightforward installation in compatible HVAC assemblies.

Cross Reference

• Evcon 7102-2187, 7990-317, 7990-317P/A, S1-7990-317
• Used in assembly models: S1-7990-6451
• DGAM (056-075)
• DGAT (056-090)
• DLAS (056-075)

Warranty

1 Year Manufacturer Warranty
