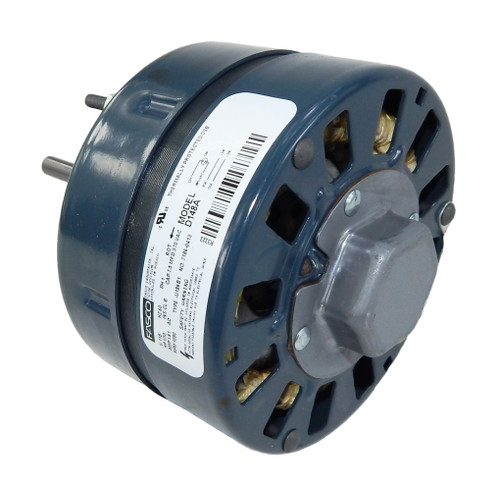

Fasco D148A Motor | 1/10 hp 1050 RPM CW 5" Diameter 115 Volts

Fasco D148A Motor | 1/10 hp 1050 RPM CW 5" Diameter 115 Volts

The Fasco D148A is a 1/10 horsepower motor designed for attic exhaust, attic fans, and rooftop ventilators. It replaces Fasco models D148, 7151-2582, 7186-0413, and Dayton 241X15, providing reliable performance with integrated run capacitor technology to improve efficiency and reduce amp draw.

Key Specifications

• Horsepower: 1/10 hp
• RPM: 1050
• Voltage: 115 Volts, 60 Hz
• Amperage: 1.61 amps
• Enclosure: Open Ventilation - Air Over
• Frame / Diameter: 5" Diameter
• Shaft Dimensions: 3/8" diameter x 3 1/2" length
• Rotation: Clockwise (CW) Shaft End
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features a belly band or stud mount with a 3-bolt circle measuring 4" for secure installation. The motor length excluding the shaft is 3", and it includes 26" power leads for easy wiring. A 7.5/370VAC run capacitor is integrated to enhance motor efficiency and reduce amp draw during operation.

Cross Reference

• Fasco D148

Warranty

1 Year Manufacturer Warranty
