Fasco D0636 Motor | 1/88 HP 1320 RPM 115V 3.3" Dia. CW Rotation Nutone Bath Fan Motor

Fasco D0636 Motor | 1/88 HP 1320 RPM 115V 3.3" Dia. CW Rotation Nutone Bath Fan Motor

The Fasco D0636 is a reliable replacement motor designed for Nutone and Broan bath fan repair projects. It is compatible with AO Smith/Century 636 and Dayton 48GN02 motors, providing efficient performance in ventilation applications.

Key Specifications

• Horsepower: 1/88 HP
• RPM: 1320
• Voltage: 115V
• Amperage: 0.85 amps
• Frame / Diameter: 3.3" Diameter
• Shaft Dimensions: 1/4" x 1 3/16"
• Rotation: Clockwise (CW)

Product Features & Fitment

This motor features a 2" body length excluding the shaft and operates with air over the motor for cooling. It includes a 6" 2-prong plug for easy electrical connection. The motor shaft end rotates clockwise and does not have mounting studs on either end, requiring specific mounting accommodations. A shaft bushing kit (KIT240) is available for adapting from 1/4" to 5/16" shaft diameters.

Cross Reference

• AO Smith/Century 636, Dayton 48GN02
• Nutone Reference # 30434, C-30434, 65073, JA2C118H, JA2C119, JA2C119H, JA2C119N

Warranty

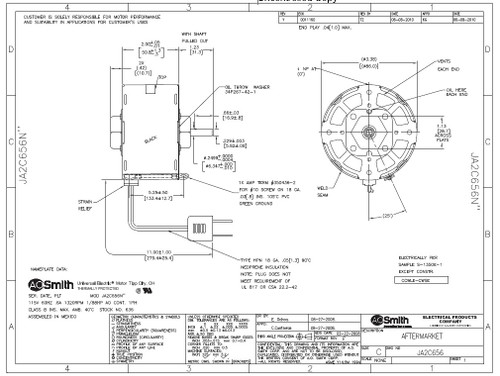

• Dimensional Drawing
