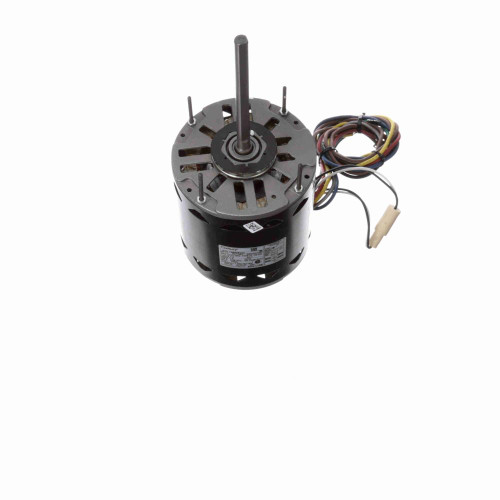

BDL1106 Century 1 hp 1075 RPM 3-Speed 48 Frame 115V Direct Drive Furnace Motor

BDL1106 Century 1 hp 1075 RPM 3-Speed 48 Frame 115V Direct Drive Furnace Motor

The BDL1106 is a reliable 1 horsepower direct drive furnace motor designed for residential HVAC applications. It serves as a replacement motor compatible with most belly band mounting setups, providing efficient and continuous duty operation.

Key Specifications

• Horsepower: 1 hp
• RPM: 1075
• Voltage: 115V
• Amperage: 12.3 amps
• Frame / Diameter: 48 Frame / 5.6" Diameter
• Shaft Dimensions: 1/2" diameter x 5.92" length
• Rotation: Reversible
• Bearings: Ball Bearings
• Enclosure: Permanent Split Capacitor Motor

Product Features & Fitment

This motor features a 3-speed design with a service factor of 1.0 and requires a 20 MFD 370V capacitor (Part #20DV) for operation. It includes 22" leads and extended thru bolts on the shaft end for secure mounting. The motor supports belly band or stud mounting and is compatible with various belly band brackets such as the Torsion Flex Bracket (3-Prong #2MEY7, 4-Prong #FM554) and Welded 3-Ring Bracket (#2MEV4). Designed for continuous duty with Class B insulation, it offers automatic overload protection and easy rotation change, suitable for ambient temperatures up to 40°C.

Warranty

1 Year Manufacturer Warranty
