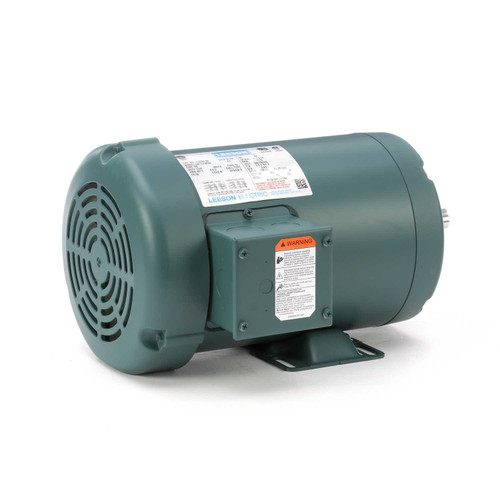

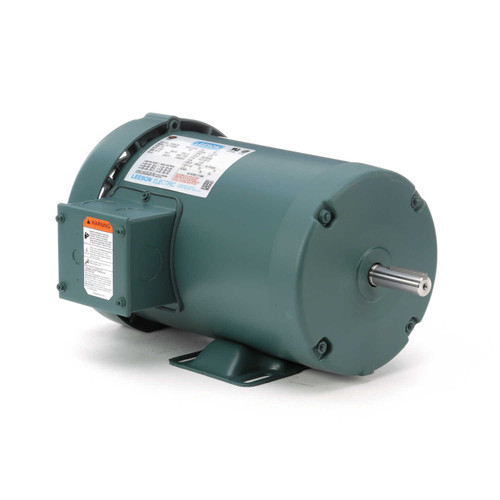

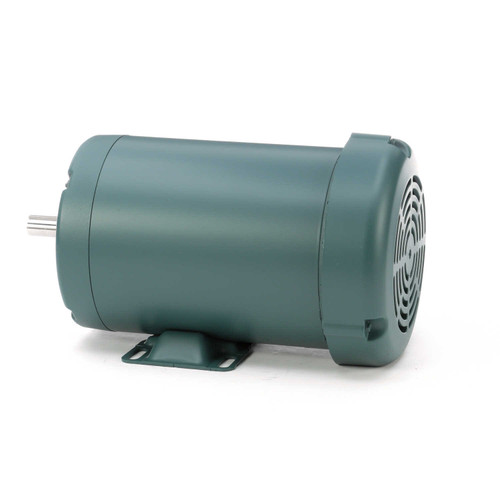

119395.00 Leeson | 1 hp 1200 RPM 56 Frame 208-230/460V TEFC

• 1 hp 1200 RPM, 3.8/1.9 amps 208-230/460 Volts 60hz. Three Phase Motor
• NEMA 56 Frame Keyed Shaft 5/8" Diameter x 1 7/8"
• Service Factor: 1.15 - overload protection = None
• Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

C6T11FB28A, 119395.00
Replaces Leeson 113933.00
