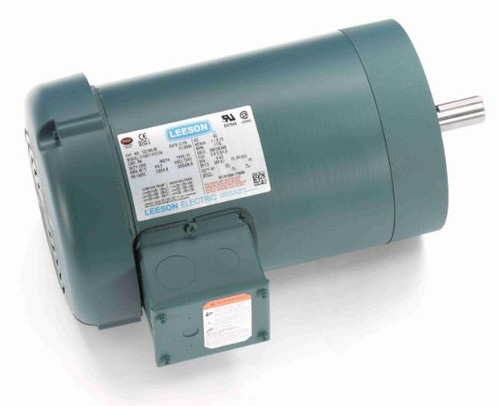

122165.00 Leeson | 1 hp 1200 RPM 145TC Frame TEFC C-Face (No Base) 208-230/460V

• 1 hp 1200 RPM, 3.8/1.9 amps 208-230/460 Volts 60hz. Three Phase Motor
• NEMA 145TC Frame Keyed Shaft 7/8" Diameter x 2 1/4"
• Service Factor: 1.15 - overload protection = None
• No Base - Reversible - Round Body Motor - Ball Bearings - Class F Insulation
• 1 Year Manufacture Warranty

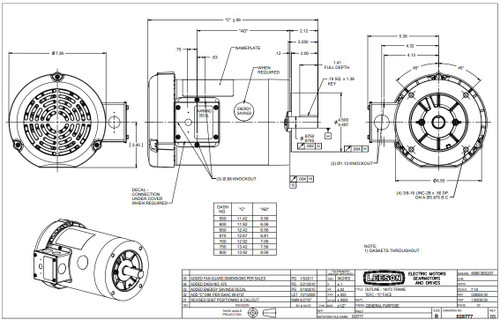

General purpose motor can be used for many applications requiring a three phase Electric motor with a C-face mount. Motor has rigid base with C-Face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

C145T11FC12A, 122165.00
Replaces Marathon C250B, 145TTFR16088, Leeson G120098.00
