121065.00 Leeson | 2 hp 1800 RPM 145TC Frame TEFC C-Face (No Base) 230/460V

121065.00 Leeson | 2 hp 1800 RPM 145TC Frame TEFC C-Face (No Base) 230/460V

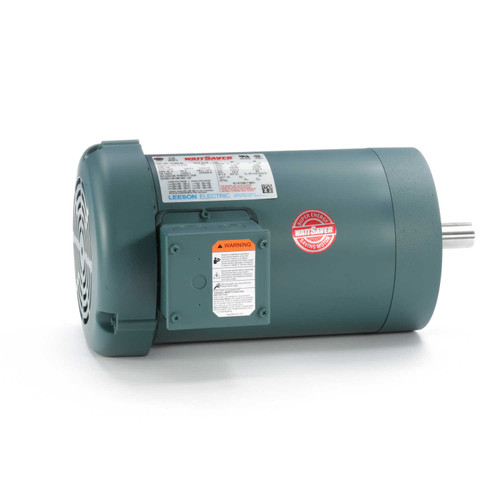

This Leeson 2 hp, 1800 RPM three-phase electric motor is designed for general-purpose industrial applications requiring a C-face mount. It replaces Leeson model G120038.00 and features a totally enclosed fan-cooled (TEFC) design for reliable operation in various environments.

Key Specifications

• Horsepower: 2 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 5.8/2.9 A
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Frame / Diameter: NEMA 145TC
• Shaft Dimensions: 7/8" diameter x 2 1/4" length, keyed shaft
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

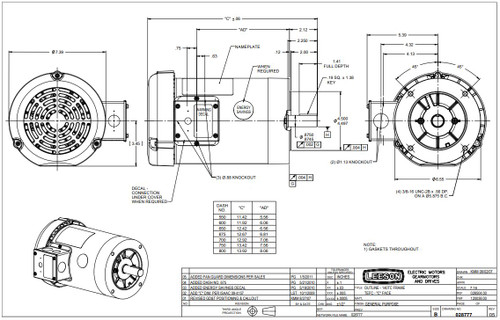

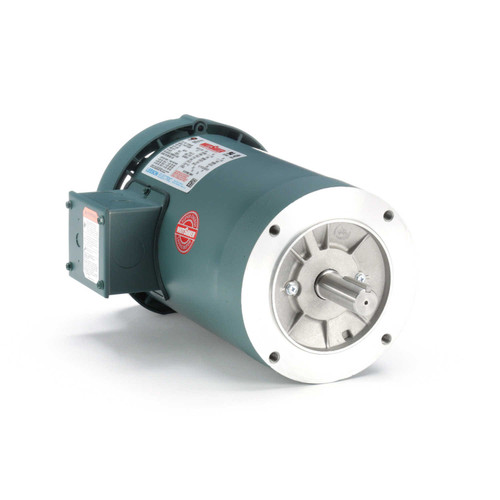

This motor features a round body with a C-face mount and no base, making it suitable for direct mounting applications. The shaft includes a keyway for secure coupling. The motor face has four threaded bolt holes spaced 5 7/8" on center across the shaft, allowing easy attachment of pumps or gearheads. A wiring diagram is provided on the motor nameplate for straightforward installation.

Cross Reference

• Leeson G120038.00

Warranty

1 Year Manufacturer Warranty
