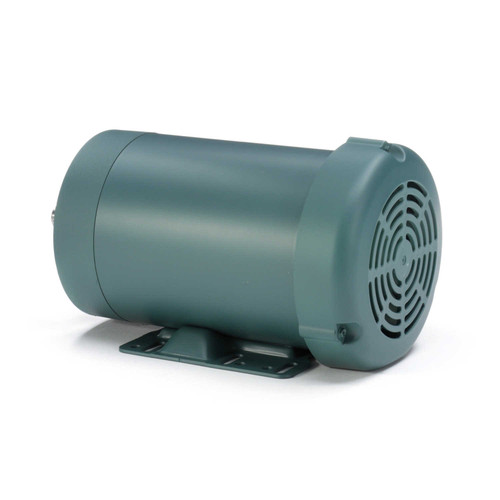

121180.00 Leeson | 1.5 hp 1800 RPM 145TC Frame TEFC C-Face (Rigid Base) 230/460V

SKU:: 121180
UPC:: 6.92E+11
Weight:: 45.00 LBS
Width:: 20.00 (in)
Height:: 12.00 (in)
Depth:: 12.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 230/460V
Horsepower:: 1-1/2 HP
RPM:: 1800
Phase:: Three Phase
Frame:: 145TC
Enclosure:: TEFC
Hertz:: 60 Hz
Amperage:: 4.8/2.4 Amps
Bearings:: Ball Bearings
Service Factor:: 1.15
Insulation Class:: Class F
Mounting:: C-Face

Current Stock:

Was: $841.80

Now: $713.46

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

121180.00 Leeson | 1.5 hp 1800 RPM 145TC Frame TEFC C-Face (Rigid Base) 230/460V

This Leeson 1.5 hp three-phase electric motor features a 145TC frame with a rigid base and C-face mount, designed for versatile industrial applications. It replaces model G121287.00 and is suitable for equipment requiring a totally enclosed fan-cooled motor with a keyed shaft.

Key Specifications

Horsepower: 1.5 hp
RPM: 1800
Voltage: 230/460 V
Amperage: 4.8/2.4 A
Enclosure: TEFC (Totally Enclosed Fan Cooled)
Frame / Diameter: NEMA 145TC

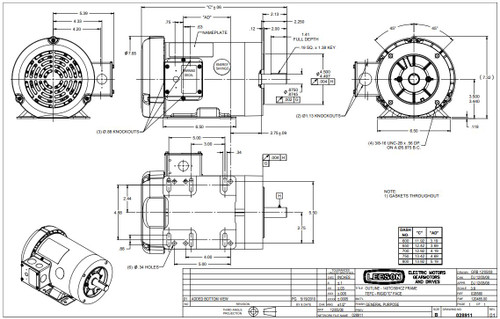

Shaft Dimensions: 7/8" Diameter x 2 1/4" Length, keyed
Rotation: Reversible
Bearings: Ball Bearings

Product Features & Fitment

The motor includes a rigid base mount with threaded bolt holes on the C-face for easy attachment of pumps or gearheads. It is equipped with a keyed shaft and features an automatic overload protection with a service factor of 1.15. Wiring diagrams are provided on the motor nameplate to assist with installation.
