122249.00 Leeson | 1.5 hp 1800 RPM 145TC Frame TEFC C-Face (Rigid Base) Brake Motor 230/460V

122249.00 Leeson 1.5 hp 1800 RPM 145TC Frame TEFC C-Face (Rigid Base) Brake Motor 230/460V

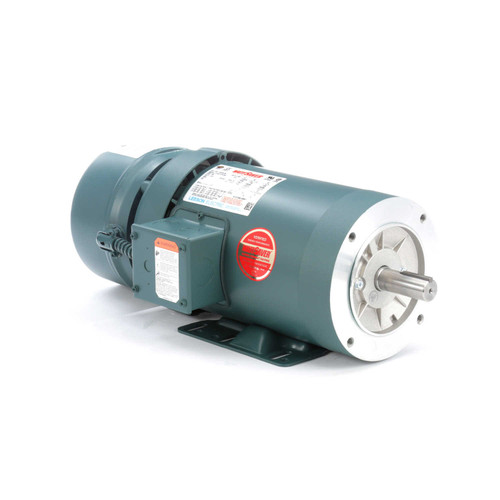

This Leeson brake motor delivers 1.5 horsepower at 1800 RPM and is designed for industrial applications requiring reliable braking and motor performance. It replaces Marathon C401 and 145TTFR5360 models, featuring a rigid base with C-face mounting for versatile installation.

Key Specifications

• Horsepower: 1.5 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 4.8/2.4 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

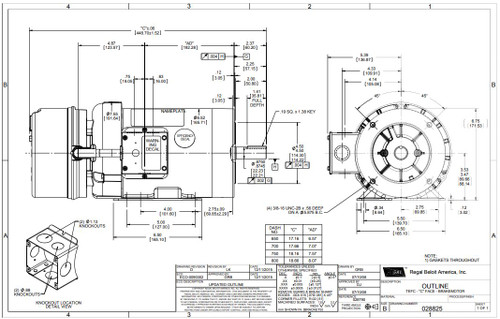

• Frame / Diameter: NEMA 145TC
• Shaft Dimensions: 7/8" diameter x 2 1/4" length

Product Features & Fitment

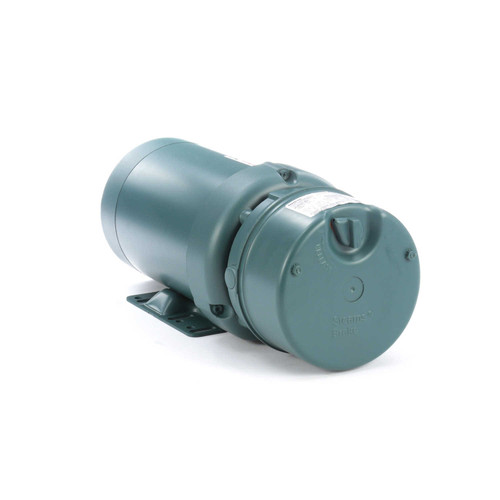

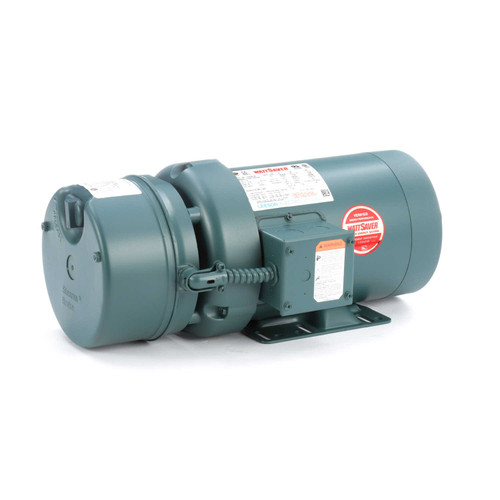

This three-phase motor includes a fail-safe, spring-set brake that automatically stops the load when power is turned off. The brake coil operates at 230/460 VAC, 60 Hz, and is manufactured by Stearns. Brake coil leads are routed into the motor’s conduit box for easy wiring and can be configured to engage either when power to the motor is shut off or independently. The motor features a power-off manual brake release that resets automatically, enhancing safety and convenience during power failures.

Cross Reference

• Marathon C401, 145TTFR5360

Warranty

1 Year Manufacturer Warranty
