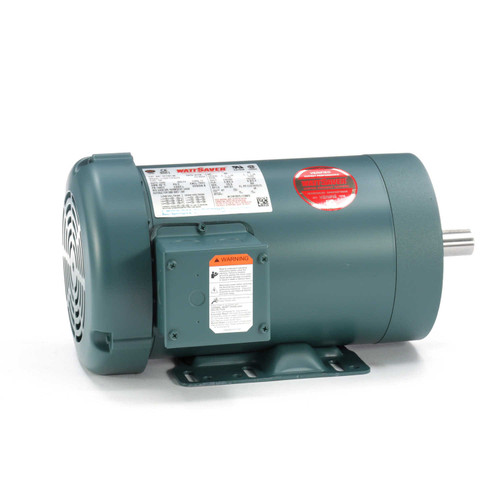

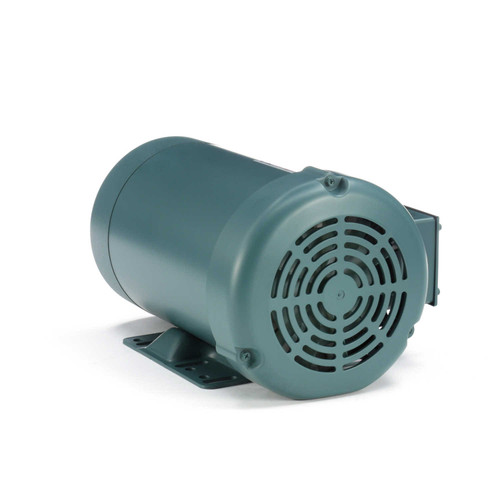

121181.00 Leeson | 2 hp 1800 RPM 145TC Frame TEFC C-Face (Rigid Base) 230/460V
121181.00 Leeson | 2 hp 1800 RPM 145TC Frame TEFC C-Face (Rigid Base) 230/460V
121181.00 Leeson | 2 hp 1800 RPM 145TC Frame TEFC C-Face (Rigid Base) 230/460V
121181.00 Leeson | 2 hp 1800 RPM 145TC Frame TEFC C-Face (Rigid Base) 230/460V
121181.00 Leeson | 2 hp 1800 RPM 145TC Frame TEFC C-Face (Rigid Base) 230/460V
121181.00 Leeson | 2 hp 1800 RPM 145TC Frame TEFC C-Face (Rigid Base) 230/460V
121181.00 Leeson | 2 hp 1800 RPM 145TC Frame TEFC C-Face (Rigid Base) 230/460V
121181.00 Leeson | 2 hp 1800 RPM 145TC Frame TEFC C-Face (Rigid Base) 230/460V

Leeson

121181.00 Leeson | 2 hp 1800 RPM 145TC Frame TEFC C-Face (Rigid Base) 230/460V

(No reviews) Write a Review
$918.85
$778.90
SKU 121181
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 230/460V
Horsepower 2 HP
RPM 1800
Phase Three Phase
Frame 145TC
Enclosure TEFC
Hertz 60 Hz
Amperage 5.8/2.9 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class F
Mounting C-Face
Adding to cart… The item has been added
Description
  • 2 hp 1800 RPM, 5.8/2.9 amps 230/460 Volts 60hz. Three Phase Motor
  • NEMA 145TC Frame Keyed Shaft 7/8" Diameter x 2 1/4"
  • Service Factor: 1.25 - overload protection = Automatic
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor with a C-face mount. Motor has rigid base with C-Face mount. Shaft has keyway. Motor has threaded bolt holes on face for mounting a pump or gear head to the motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

C145T17FK27E, 121181.00, Replaces G120276.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 230/460V
Horsepower 2 HP
RPM 1800
Phase Three Phase
Frame 145TC
Enclosure TEFC
Hertz 60 Hz
Amperage 5.8/2.9 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class F
Mounting C-Face
!
