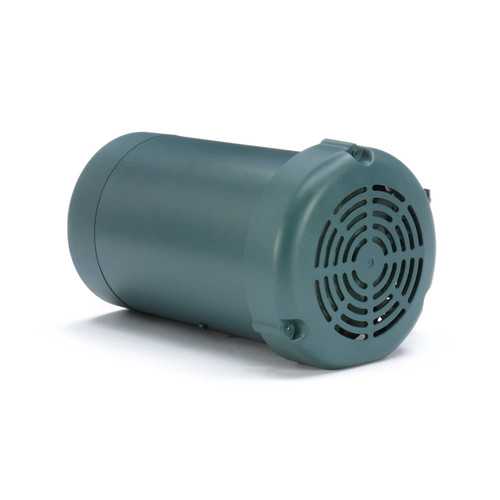

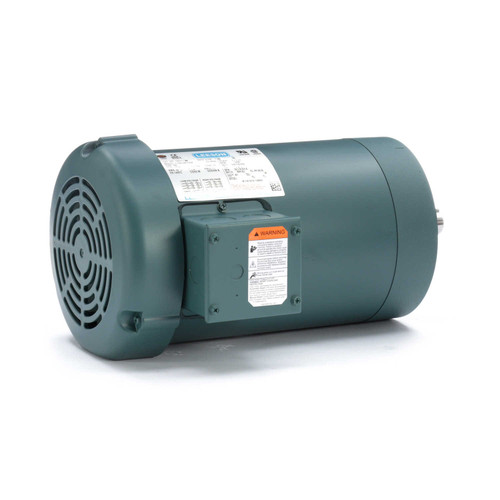

122171.00 Leeson | 3 hp 3600 RPM 145TC Frame TEFC C-Face (No Base) 230/460V

• 3 hp 3600 RPM, 8.0/4.0 amps 230/460 Volts 60hz. Three Phase Motor
• NEMA 145TC Frame Keyed Shaft 7/8" Diameter x 2 1/4"
• Service Factor: 1.15 - overload protection = None
• No Base - Reversible - Round Body Motor - Ball Bearings - Class F Insulation
• 1 Year Manufacture Warranty.

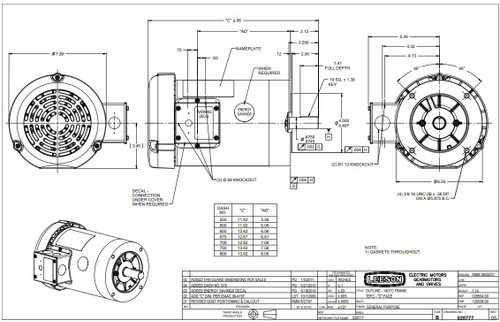

General purpose motor can be used for many applications requiring a three phase Electric motor with a C-face mount. Motor has rigid base with C-Face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

C145T34FC45A, 122171.00
Replaces Leeson G120993.00
