120824.00 Leeson | 3 hp 3600 RPM 145TC Frame TEFC C-Face (no base) 230V

120824.00 Leeson | 3 hp 3600 RPM 145TC Frame TEFC C-Face (no base) 230V

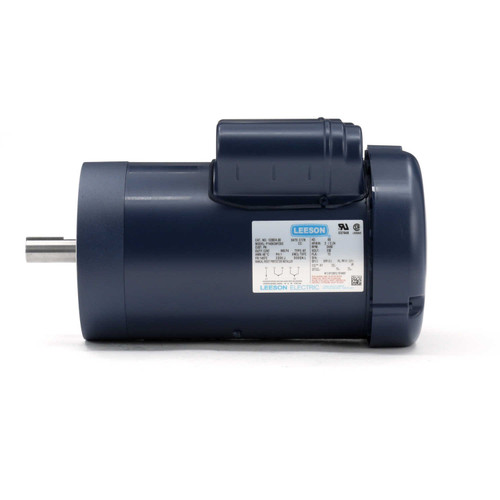

This Leeson 3 hp single-phase electric motor is designed for general-purpose applications requiring a C-face mount. Ideal for woodworking equipment such as table saws and planers, it offers reliable performance with a totally enclosed fan-cooled design that protects against dust and debris.

Key Specifications

• Horsepower: 3 hp
• RPM: 3600
• Voltage: 230 V
• Amperage: 13.0 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 145TC
• Shaft Dimensions: 7/8" diameter x 2 1/4" length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

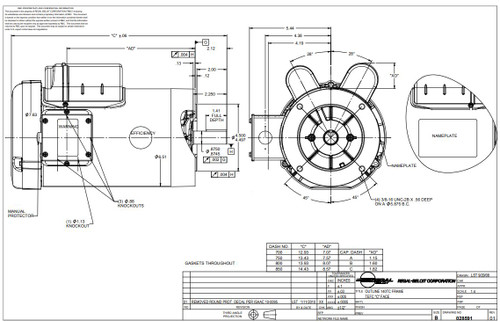

This round body motor features a C-face mount with four threaded bolt holes spaced 5 7/8" on center for secure attachment of pumps or gear heads. It does not include a base, allowing flexible installation options. The motor is manually overload protected and includes a wiring diagram on the nameplate for easy setup.

Warranty

1 Year Manufacturer Warranty
